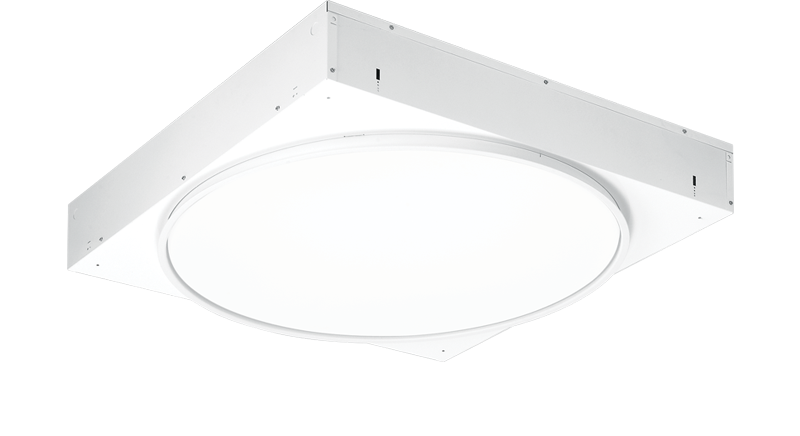

RND Round Architectural Recessed

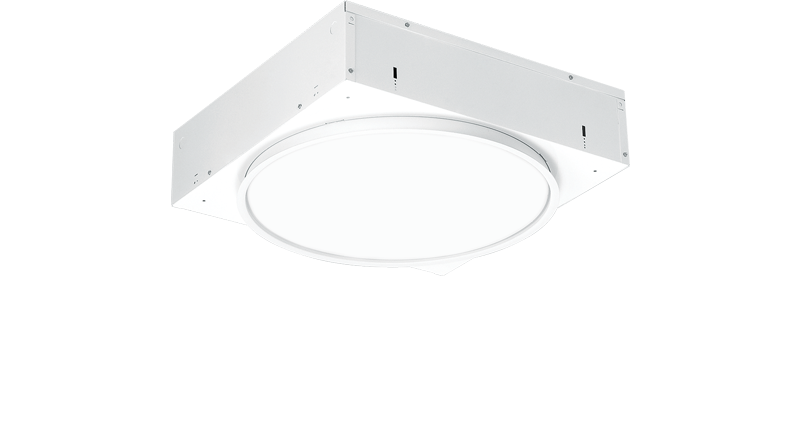

2' Diameter with Frosted Concave Lens

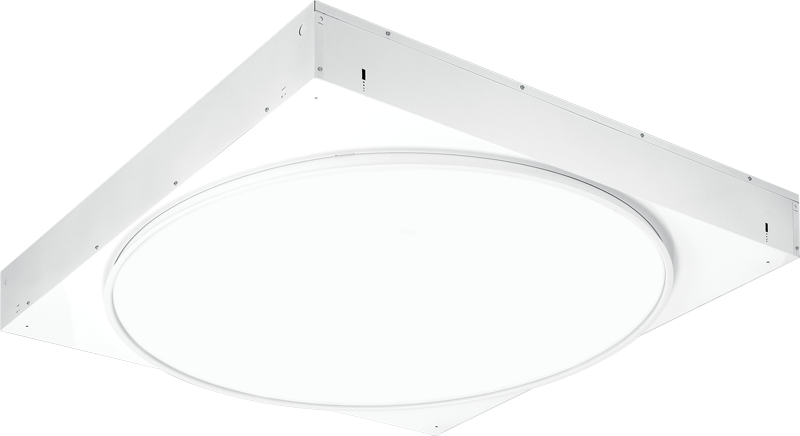

4' Diameter with Frosted Concave Lens
3' Diameter with Frosted Concave Lens
RND: Round, recessed architectural fixture adds visual interest. Frosted, round acrylic lens provides soft, uniform light distribution.
Build American, Buy American compliant
Chicago Plenum / CCEA Compliant

Features

  • Provides soft, uniform ambient illumination
  • Flat, convex, or concave lens profile adds visual interest to a variety of applications
  • Adjustable ring and lens assembly provides clean appearance
  • Inner flange prevents light leaks
  • Lift-and-twist lens assembly allows for easy maintenance
  • Drywall or grid system installation
  • 2', 3', and 4' diameters available
  • Quick-wire access plate in back of fixture housing for easy attachment of incoming power supply
  • Combine multiple mounting types to create a unique and modern space
  • All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion
  • Build America, Buy America and Buy American Act compliant
  • Wireless in-fixture control solutions available
  • Made Right Here® in the USA

Tools

Quantity Estimator

Estimate fixture quantities and light levels.

Product Builder

Configure fixtures and streamline the ordering process.

Use your zip code to find your local agent.

Specifications

Housing

20-gauge C.R.S.

Shielding

Frosted acrylic lens, .125″ thick.

Finish

92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal on reflective surfaces. Textured matte white powder after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.

Electrical

High-quality mid-power LED boards. L85 at 50,000 hours. 25ºC maximum ambient operating temperature. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shades of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.

Mounting

For installation in NEMA Type “G”, “SS”, or “F” ceiling systems. Earthquake clips are standard. Fixture must be installed prior to ceiling system installation.

Listings

 • cCSAus certified as luminaire suitable for dry or damp locations.
• City of Chicago Environmental Air approved when specified with CP option.
• Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
Request certification at hew.com/buy-american.

Warranty

 5-year limited warranty, see details
